Digital Differential Manometer

ET180

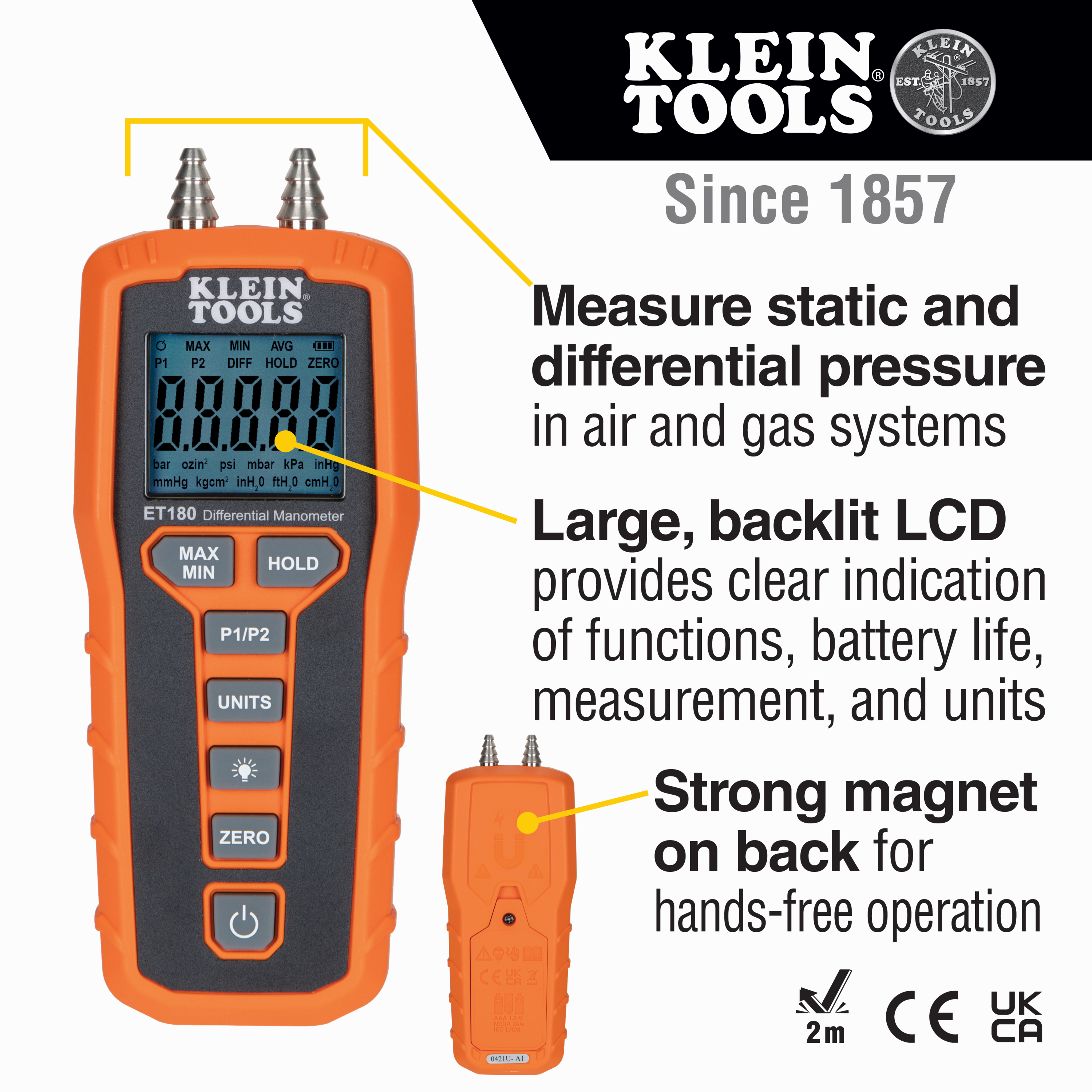

  • Digital Manometer measures air and gas pressure for ports P1, P2 and differential
  • Range of +/-60 inH2O and full scale accuracy of +/-1.5 percent

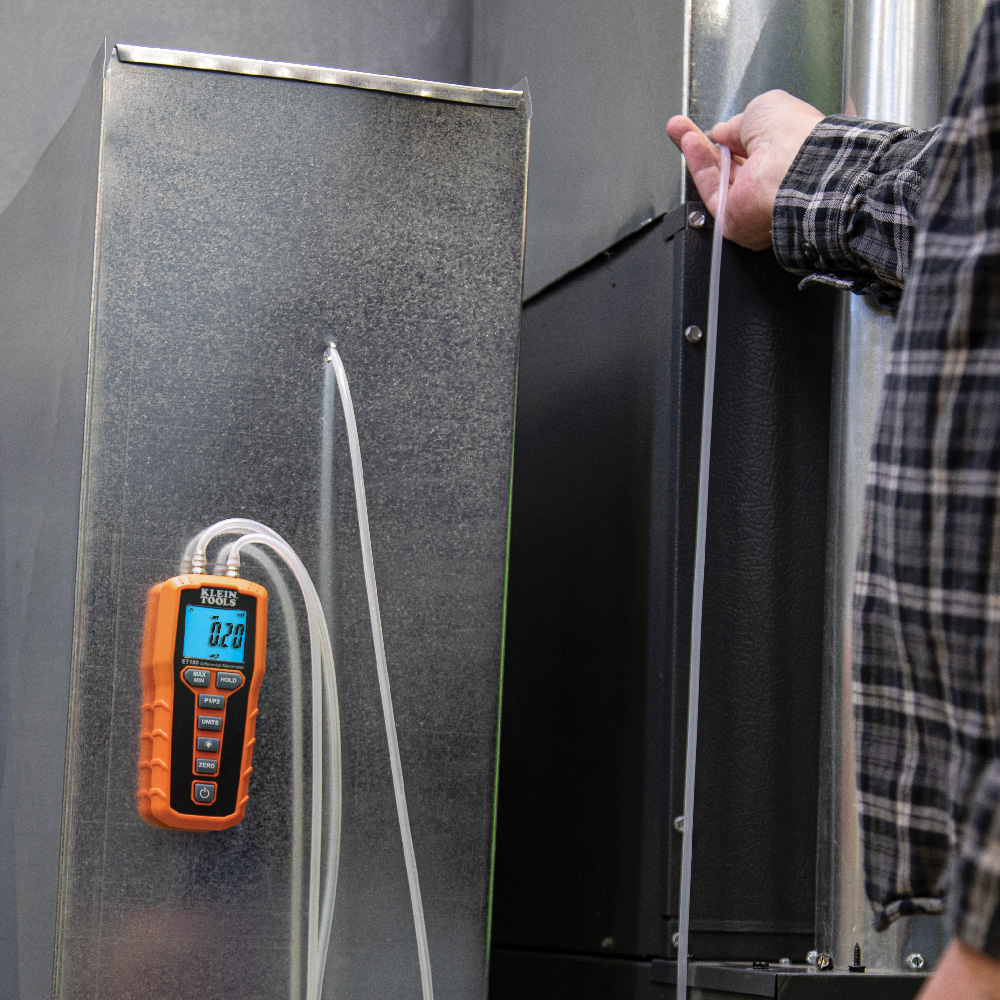

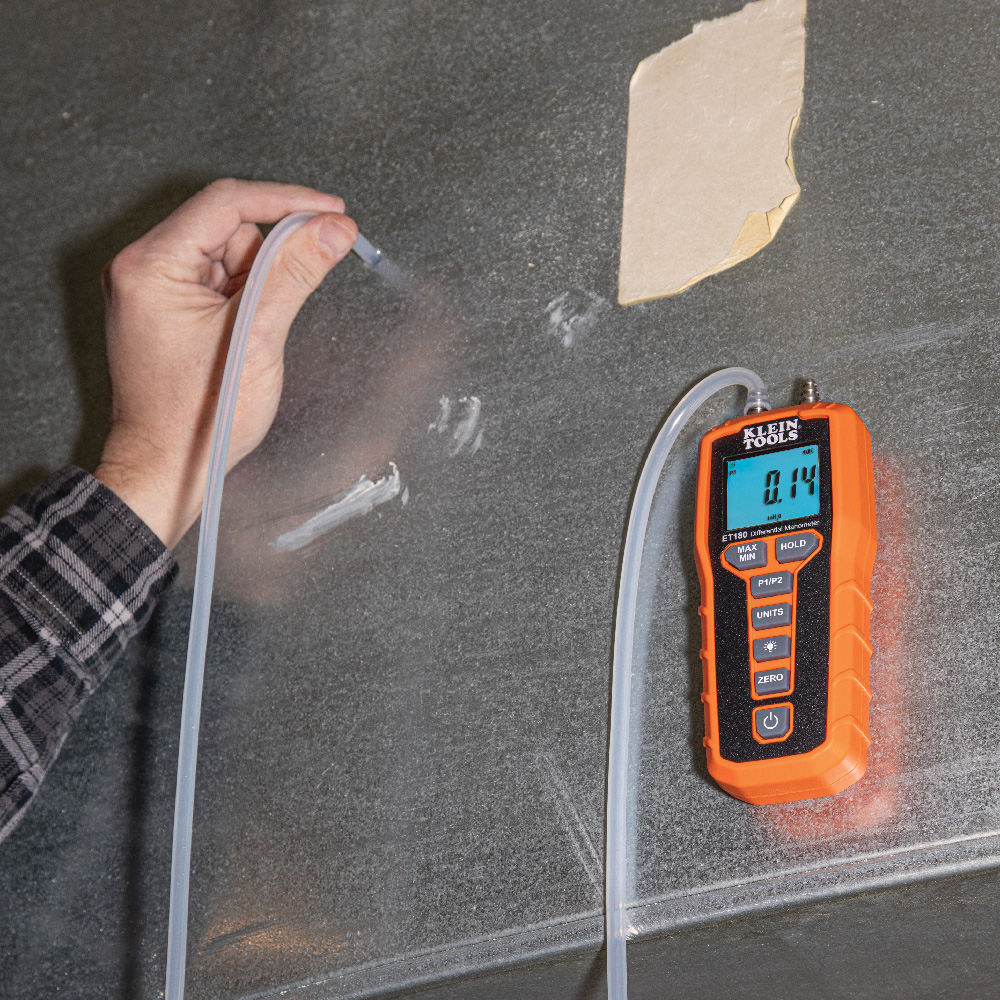

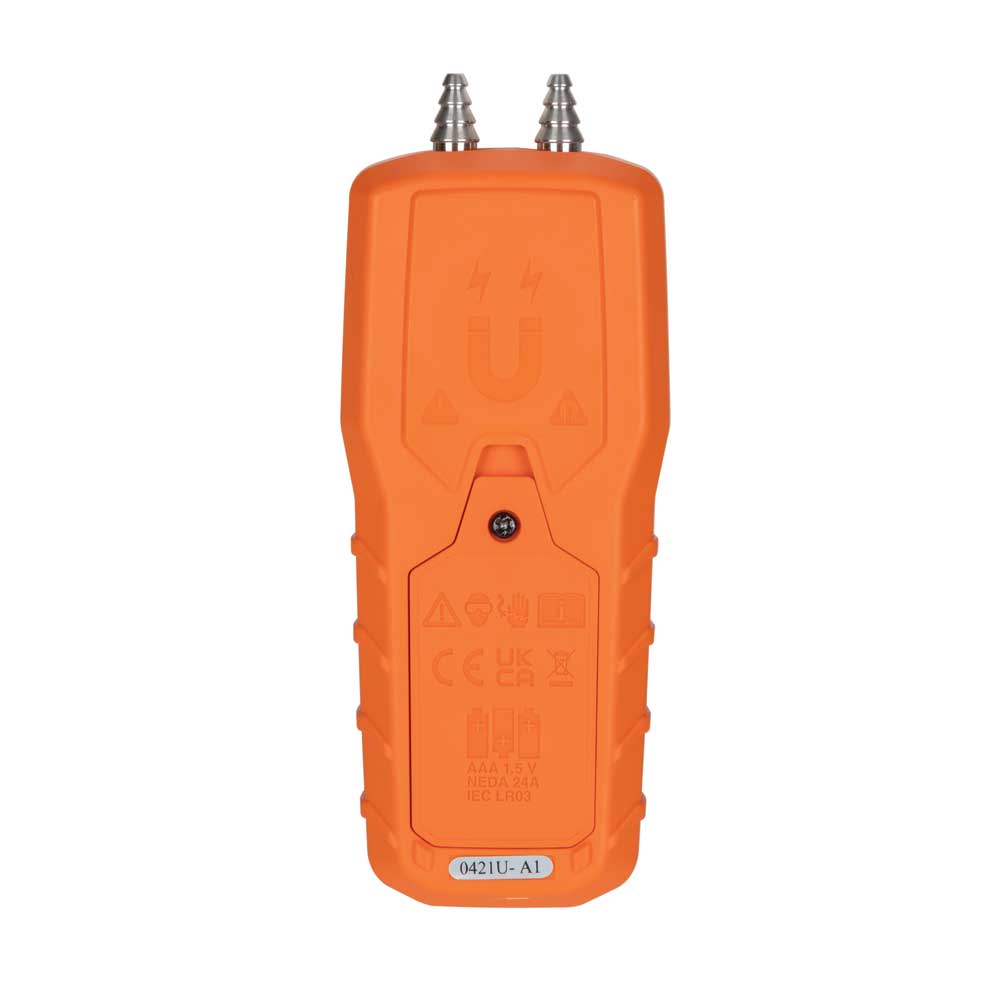

  • Strong magnet on the back for hands-free operation
  • Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20 and cmH2O
  • Calculates the minimum, maximum and average values
  • Large LCD is backlit for easy viewing in low light conditions
  • Auto Power-Off feature conserves battery life

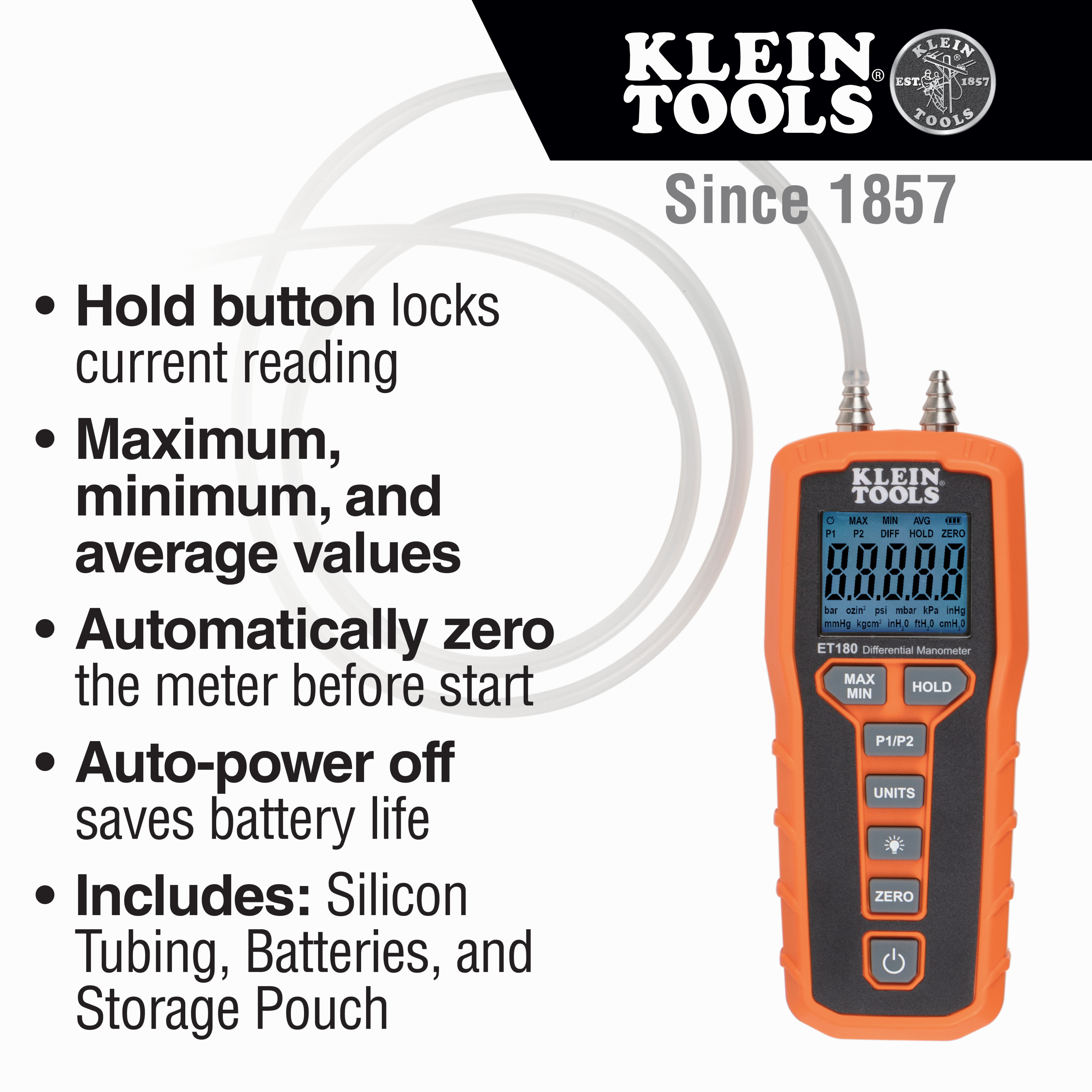

  • Hold button locks current reading on the display
  • Silicon tubing, 3 x AAA batteries and storage pouch included
Video
Images
JPG (High Resolution) et180_photo.jpg
PNG (Transparent Background) et180.png

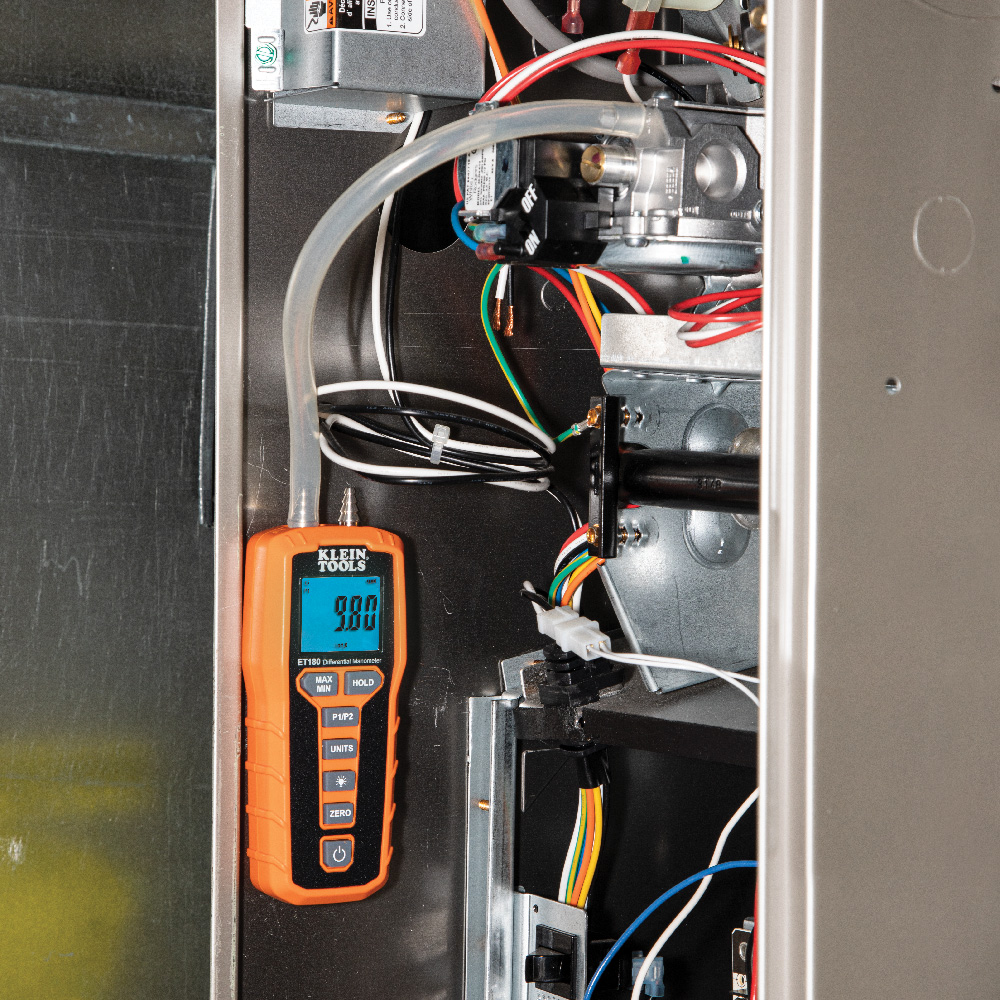

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for Port 1 and Port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20 and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.

Specifications
Type:
Differential Pressure
Application:

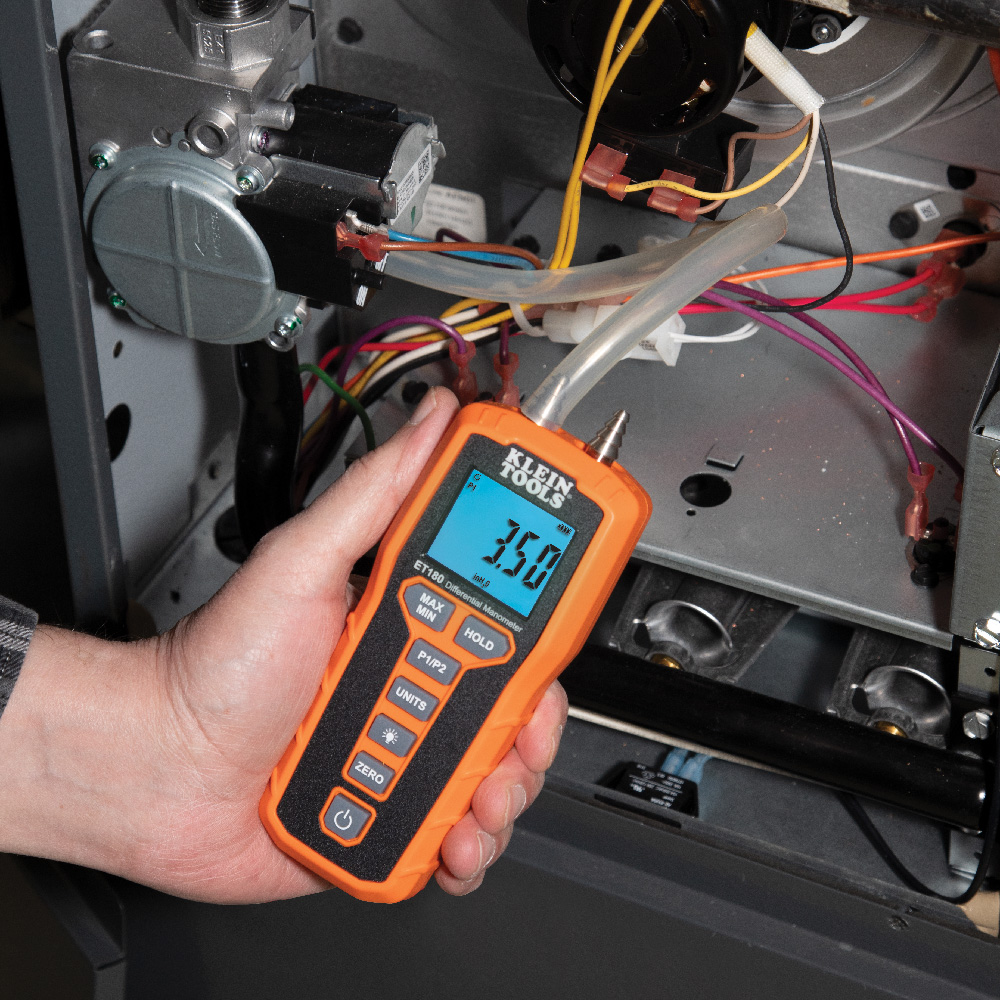

Measure Static and Differential Pressure
Special Features:
Magnet on Back of Housing
Modes:
P1, P2, Differential
Pressure Measurement Range:
+/-60 inH2O
Maximum Pressure (PSI):
2.16 PSI
Maximum Pressure Reading (WC):
60
Maximum Pressure Reading (WC):
-60
Accuracy:
+/-1.5% Full Scale
Measurement Units:
bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
Number of Ports:
2
Connector Type:

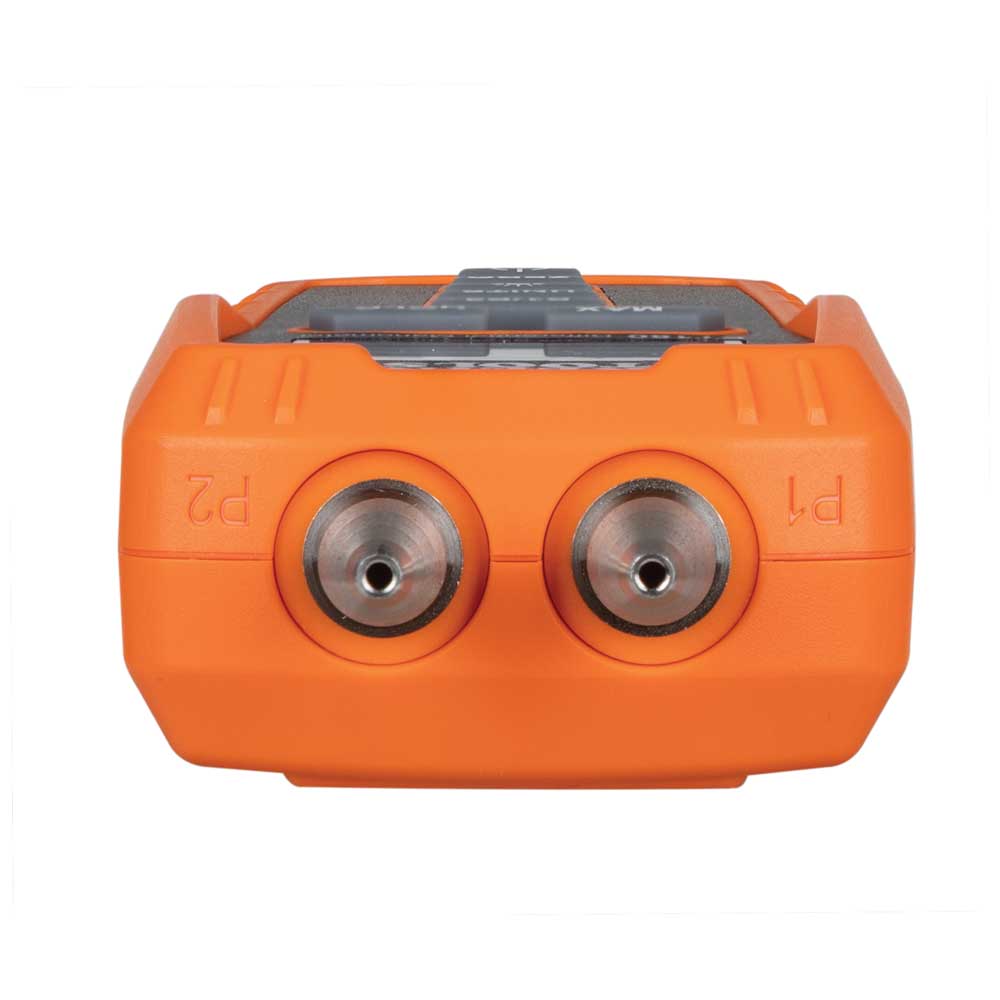

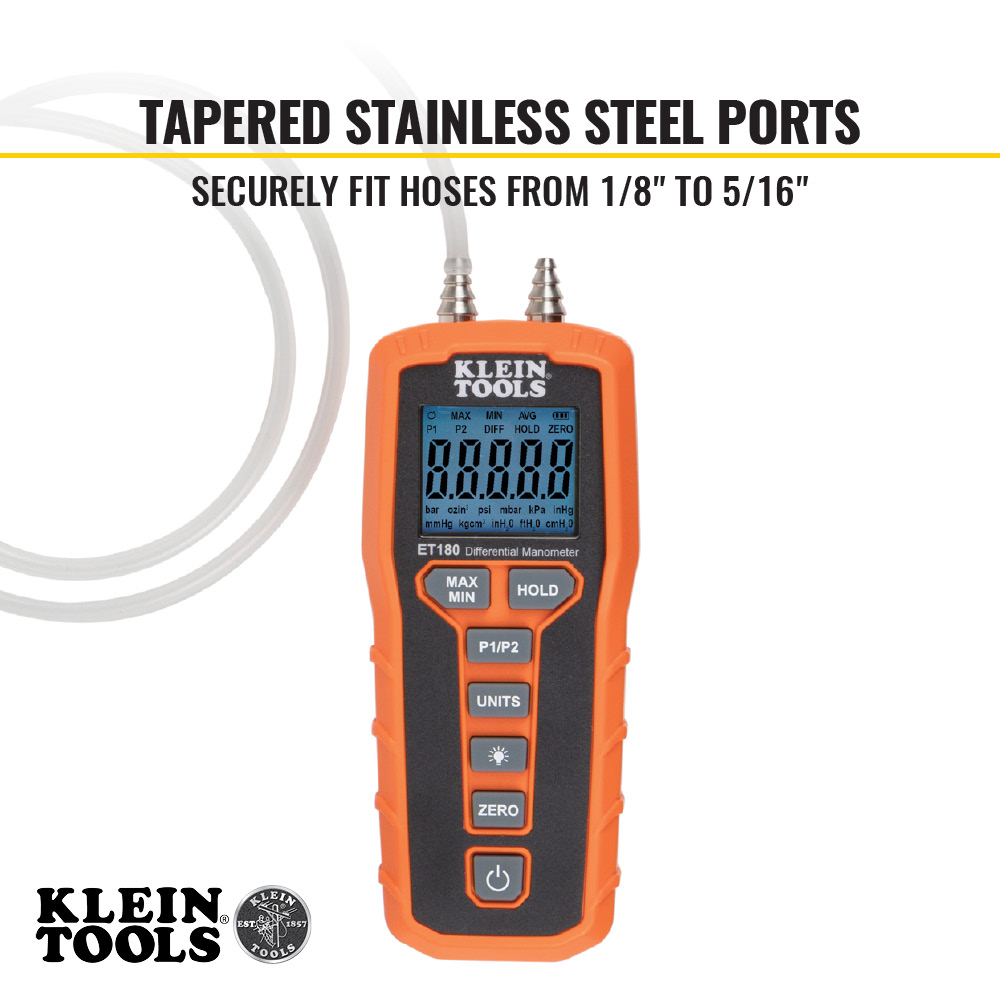

Tapered Stainless Steel Ports from 1/8'' to 5/15''
Temperature Range:
32° to 122° F (0° to 50° C)
Display:
Backlit LCD
Batteries:
3 x AAA
Low Battery Indicator:
Yes
Auto Power-Off:
Yes
Material:
ABS, Stainless Steel
Overall Length:
2.47'' (6.3 cm)
Overall Height:
6.19'' (15.7 cm)
Overall Width:
1.38'' (3.5 cm)
Included:

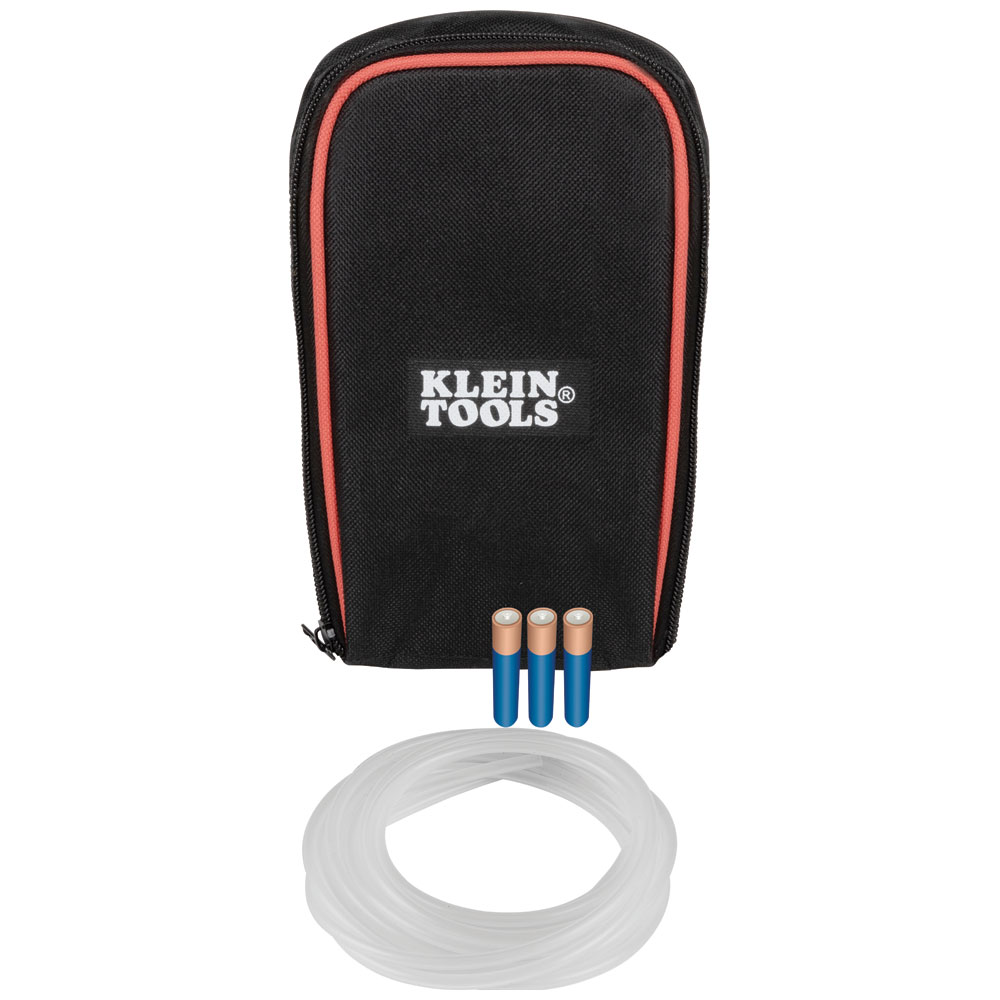

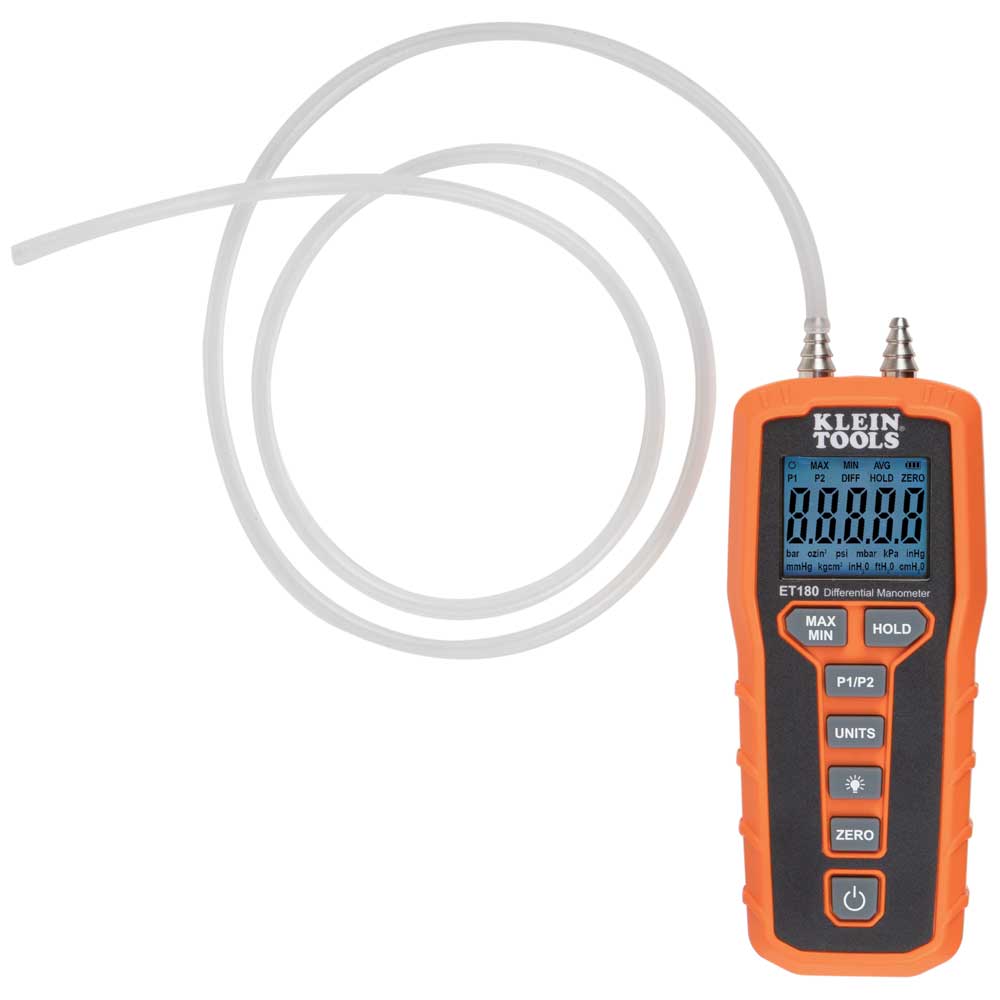

6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicone Tubing, 3 x AAA Batteries, Pouch, Instruction Manual
Standard:
Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
Weight:
7.2 oz (202 g)
UPC:
092644693366
Additional Information
Warnings
  • Read, understand and follow all instructions to ensure safe operation.
  • The meter is NOT insulated. Avoid contact with areas where energised conductive elements may be present. Shut off power to the area before starting measurements.
  • Always wear approved eye protection.
