Pass-Thru™ Modular Data Plugs, RJ45-CAT6A, UTP 200-Pack

VDV826-764

  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
  • For CAT6A cable and larger diameter/thicker jacket CAT6 cable

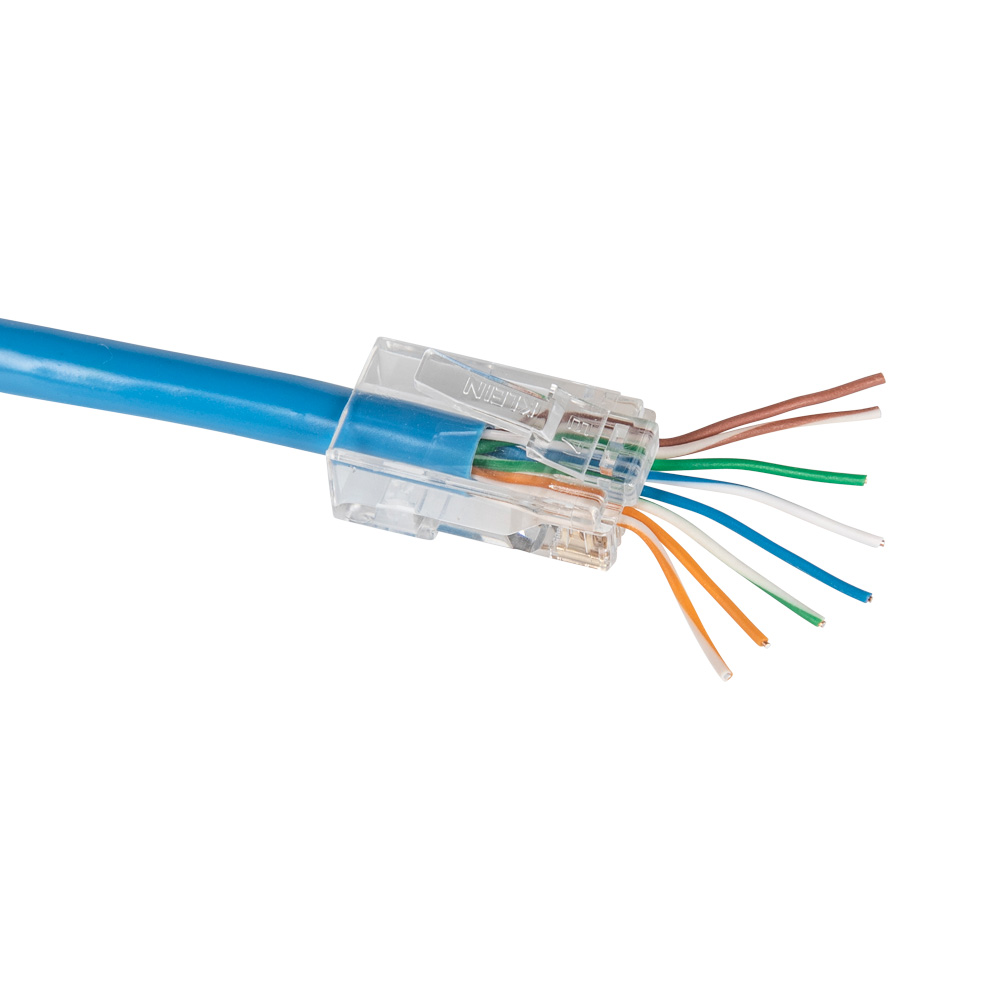

  • CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • Fully compliant with Power Over Ethernet (PoE and PoE+) standards
  • Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)

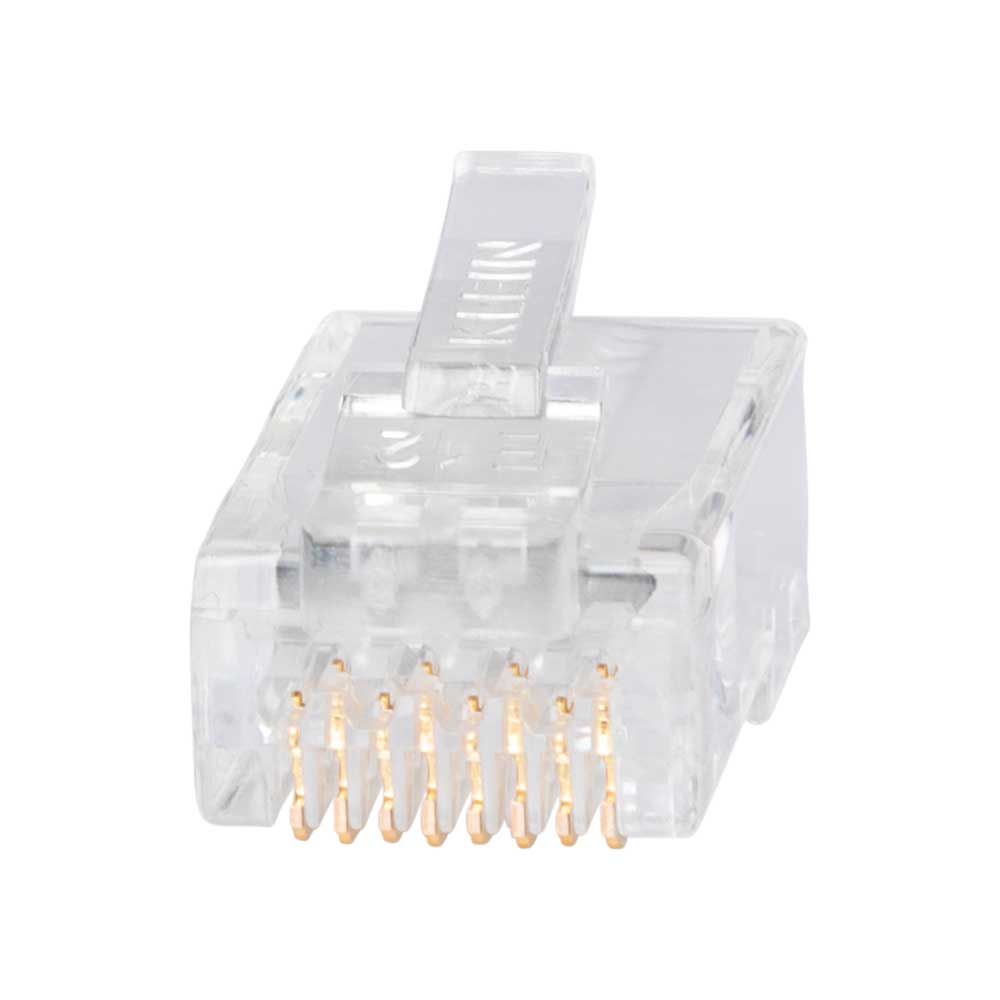

  • 8 position, 8 contact pass-through type data plugs for solid or stranded wire
  • Category 6A performance per TIA/EIA-568-B.2

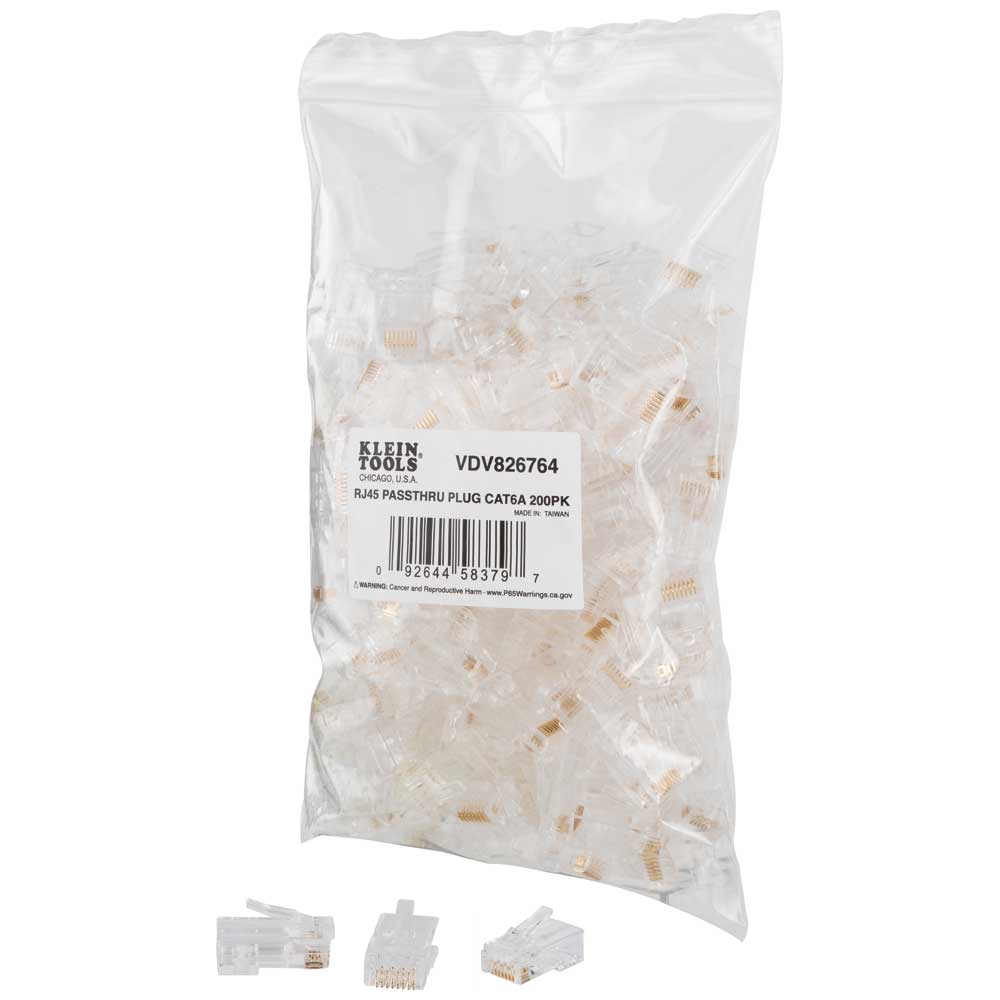

  • 200-Pack

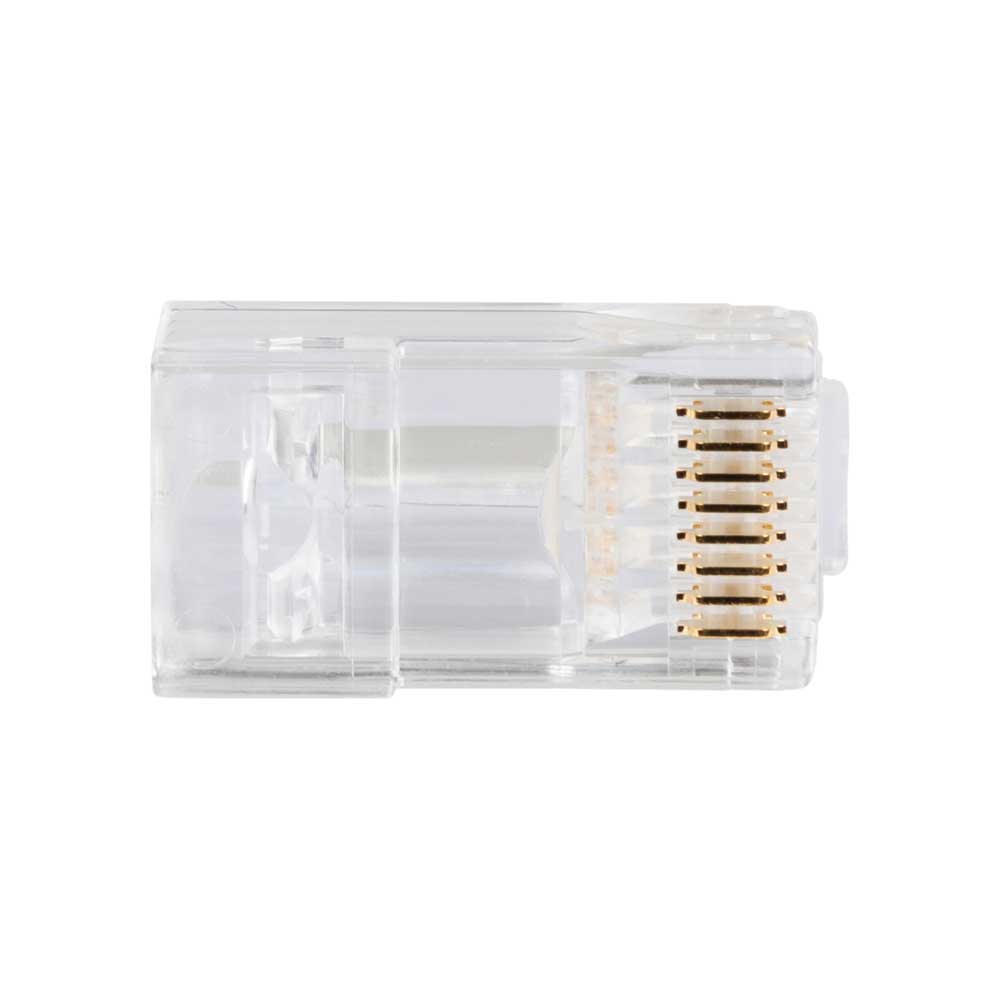

  • 50µ-inch gold plating on all contact surfaces

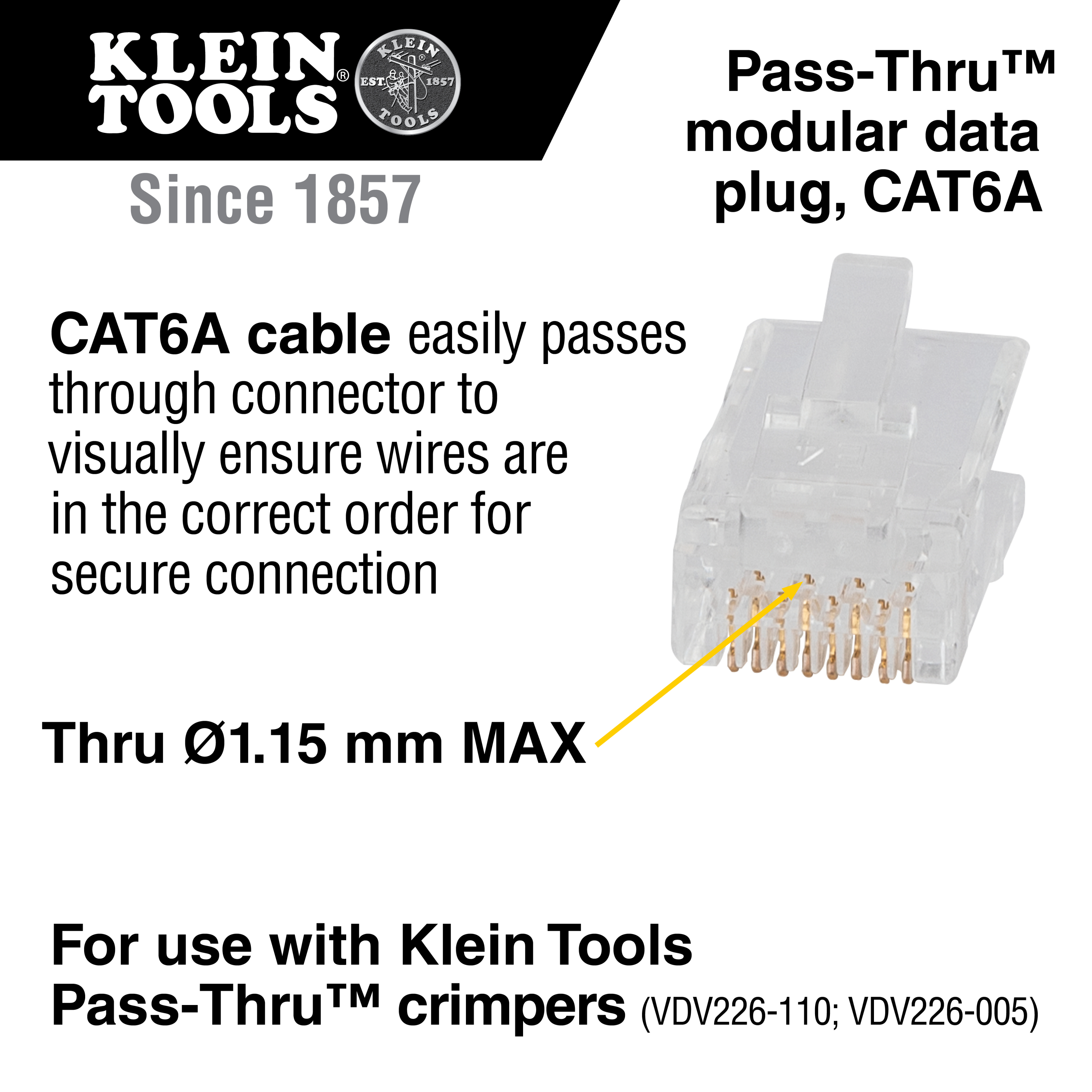

  • Max diameter for CAT6A Pass-Thru™ Connectors is 0.043'' (1.1 mm)
Videos
Images
High-Res JPG vdv826764_photo.jpg

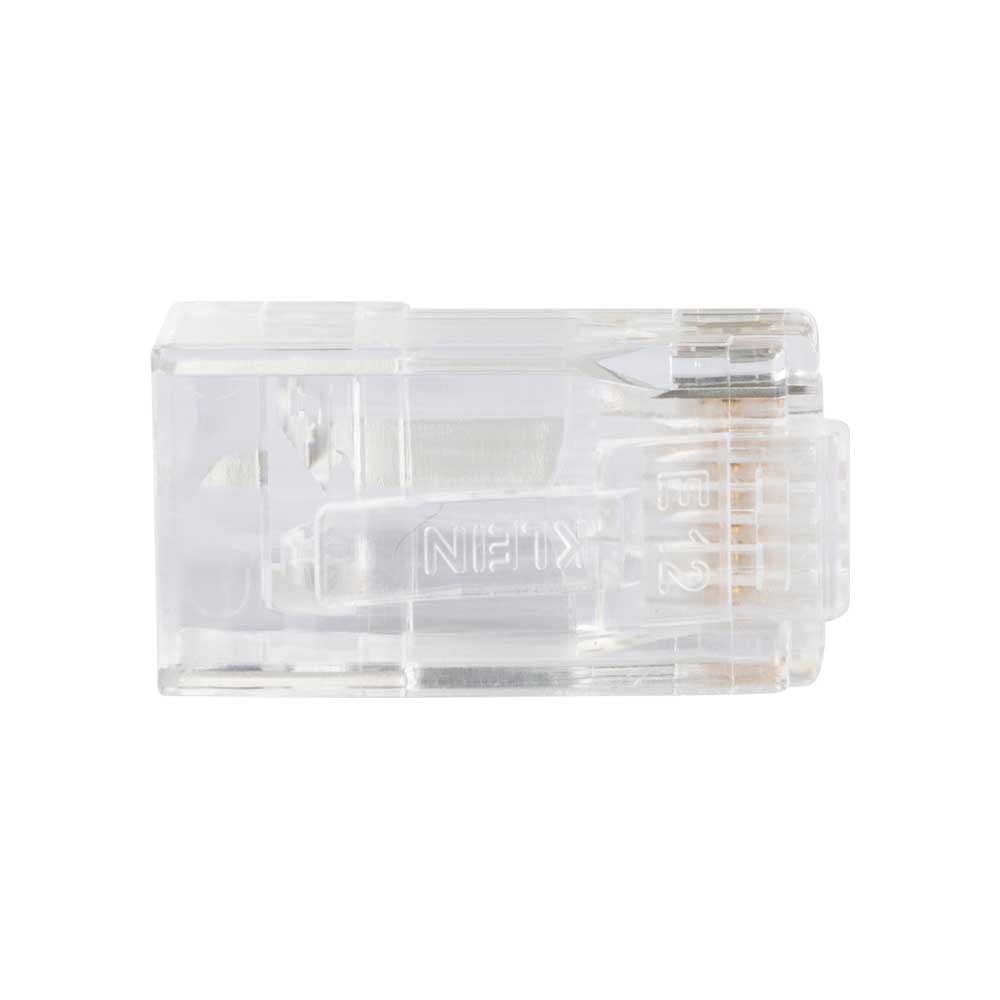

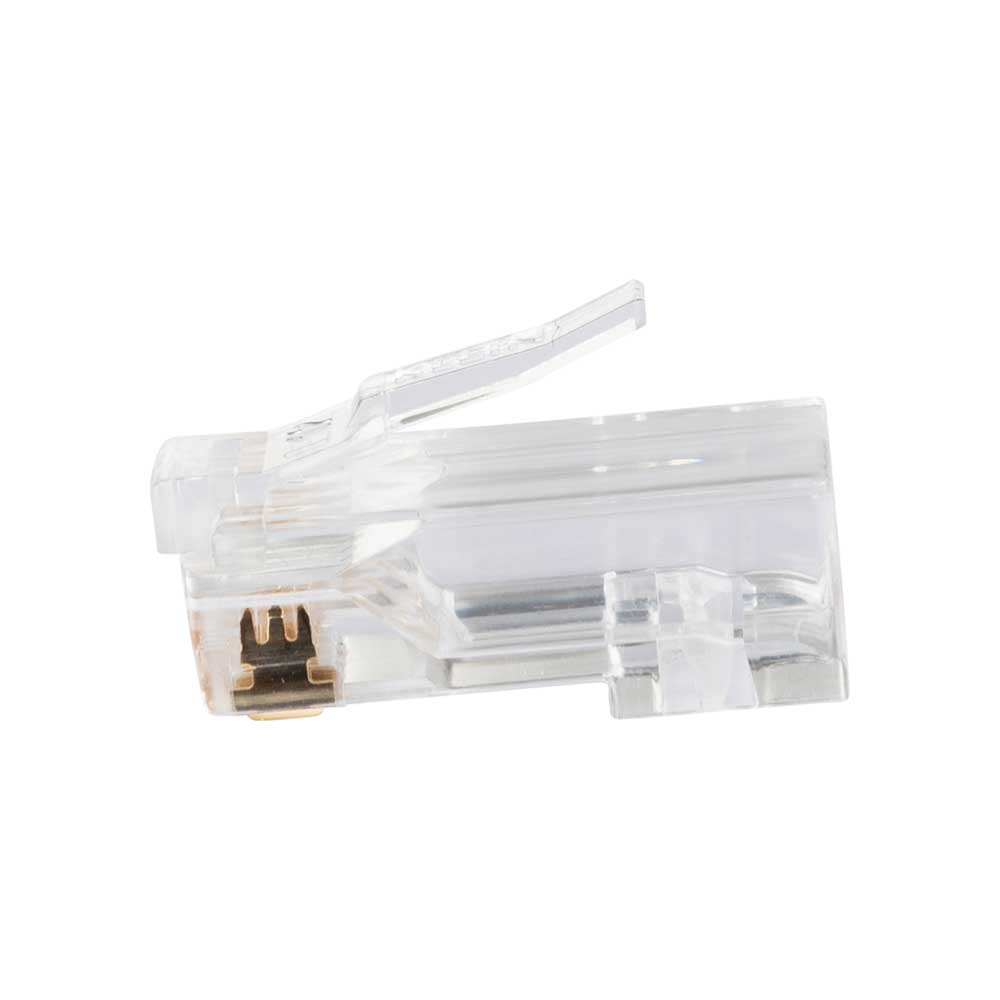

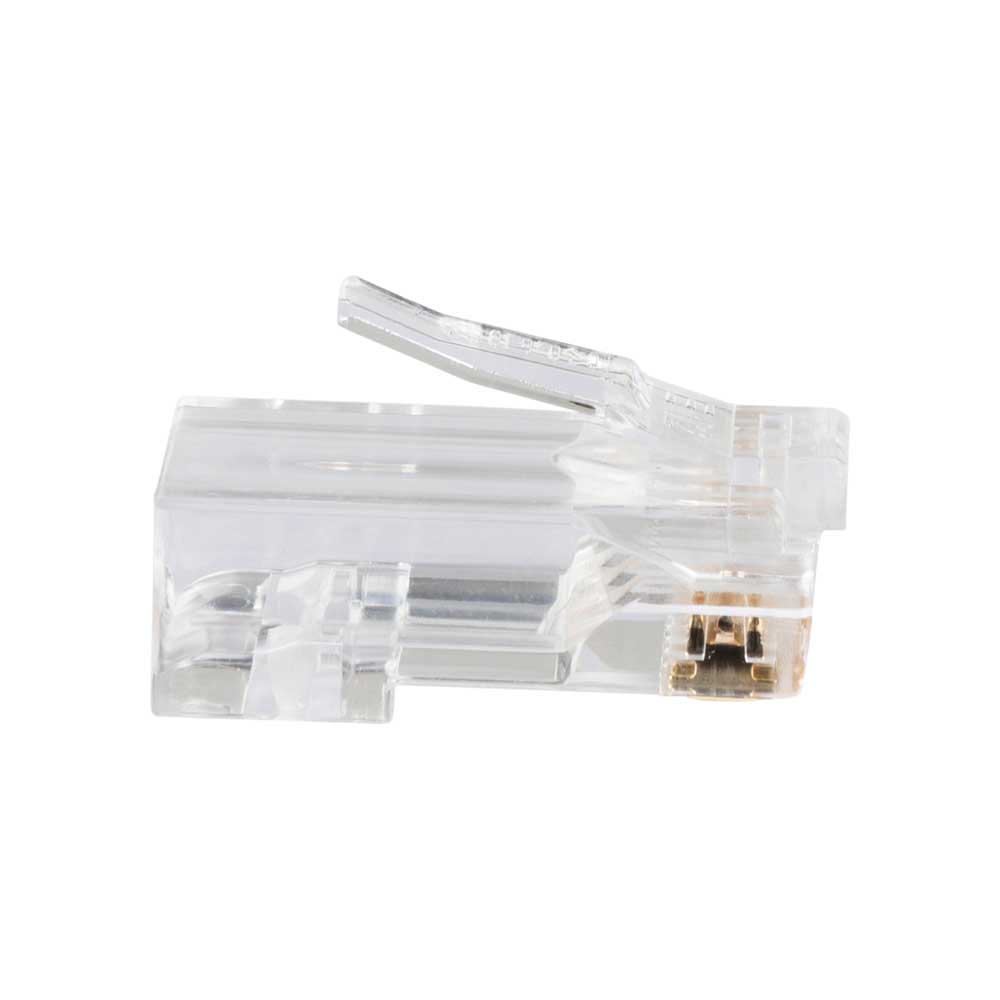

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through the connector for a consistent and secure termination. Saves time, trims flush to end face when used with the Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110 and eliminates wasted materials.

Specifications
Type:
Modular
Application:
Voice and Data
Special Features:
Pass-Thru™ Technology; Meets All PoE+ Standards
Overall Length:
0.875'' (2.2 cm)
Overall Height:
0.453'' (1.2 cm)
Overall Width:
0.094'' (0.2 cm)
Material:
PVC plastic; Gold-plated contacts
Connector Type:
RJ45
Cable Type:
CAT6A UTP and Larger Diameter CAT6
Position & Contacts:
8P 8C
Connector Colour:
Clear
Solid Conductor Wire:
Yes
Stranded Conductor Wire:
Yes
Package Quantity:
200
Weight:
9.34 oz (265 g)
UPC:
092644583797
Additional Information
Warnings
  • Do NOT use on live circuits or cabling systems.
